Product Description

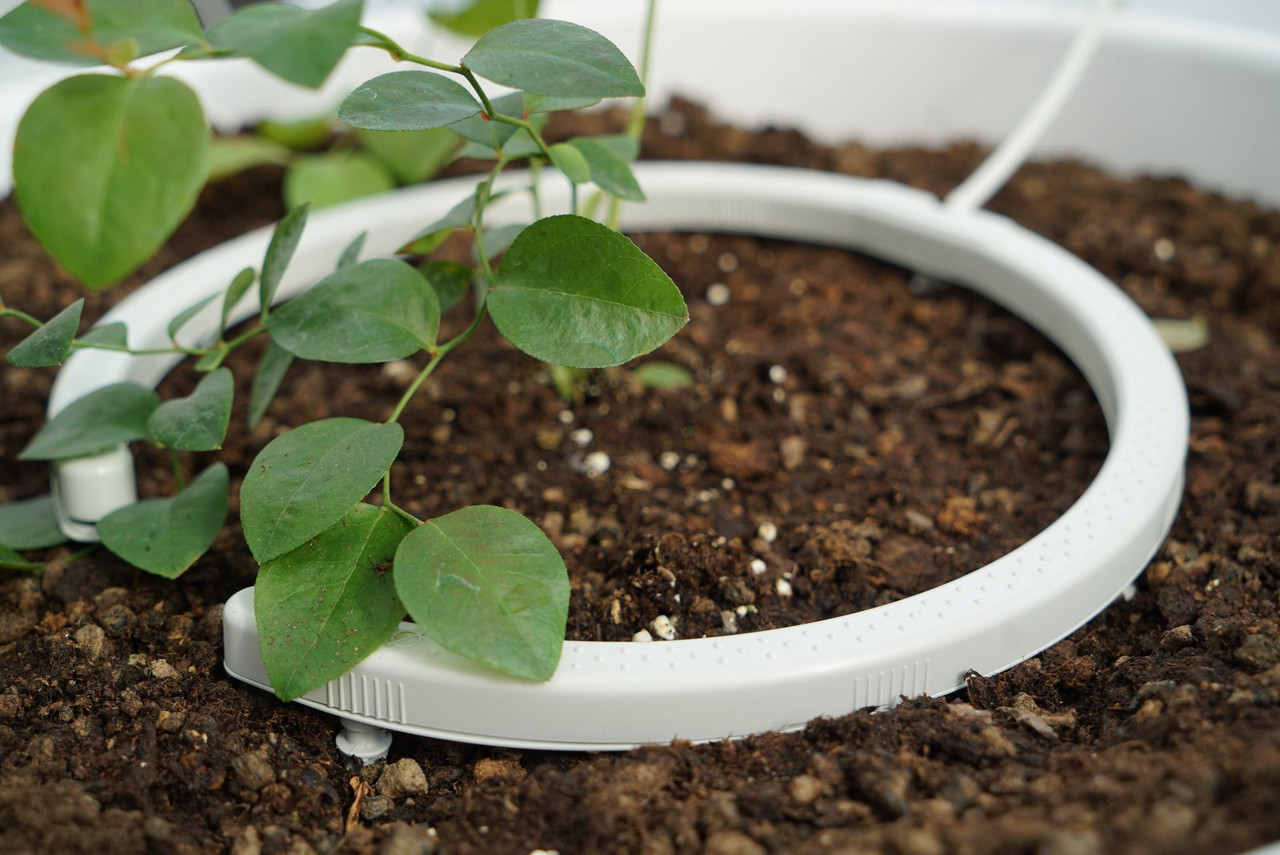

Netafim Netbow 10" 8 Outlet .53 gph 60 in box.
Recommended emitter https://dsurbanfarm.com/netafim-woodpecker-2-0-gph-8-0-lph-cnl-nipple-green-each/
Compatible with 20-40 liters (5-10 gallon) containers
Diameter: 250mm (10 inches)
• When connected to a hub dripper NetBow can deliver flow rate as low as ¼ l/h from each one of its 8 dripping outlets (total flow rate: 2 l/h), while maintaining sufficient velocity for self-cleaning.
Flow Rate: 8 dripping outlets with flow of 2.0 l/h 0.53 GPH each at 1.0 bar (14.5 PSI)
• When connected directly to water supply NetBow™ delivers 2 l/h from each one of its 8 dripping outlets (total flow rate: 16 l/h) at 1.0 bar.
The flow from each dripping outlet will be determined by the hub dripper, based on the pressure developed in the NetBow inlet We recommend that the flow of the hub dripper to be 2-8 l/h.
If your flow is out of this determined range please follow Netafim guidelines for online drippers
design Superb Chemical and UV resistance for extended durability Colored light gray for improved light reflection
Max operating pressure 4.0 bars (58.0 PSI)
https://www.netafim.com/4955cb/en/bynder/673B2E3C-98B2-4F6A-A99895EC7DB28AC5-netbow-brochure-eng.pdf
